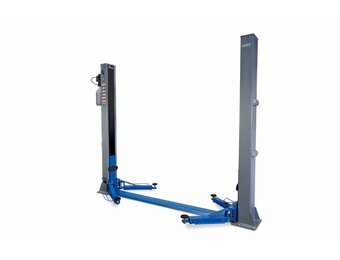

Technical data of the TM 2 Column hydraulic lifting bridge 4 ton Fully automatic 230V | |
| Top quality lift bridge with CE certificate | |
| Produced according to ISO 9001 standards | |
| Electrical / Mechanical safety hooks | |
| High-quality columns made of special rolled metal | |
| 2 hydraulic cylinders for powerful lifting and lowering | |
| Synchronization through synchronization cables | |
| Automatic safety system | |
| Electric / Manual release | |
| Telescopic lifting arms | |
| Telescopic adjustable support arms | |
| Lift capacity 4000kg | |
| lift height 1900mm | |
| minimum height 110mm | |
| column height 2822mm | |
| between horizontal width outside the columns 3380mm | |
| between horizontal width within the columns 2770mm | |
| lift speed 50sec. | |
| motor power 2.2kw | |
| work voltage 220v | |
| weight 700kg | |
| required hydraulic oil 10l |
This lift bridge is supplied as standard. | |
| |
| |
| |
| |
|
